5,000 pcs/h

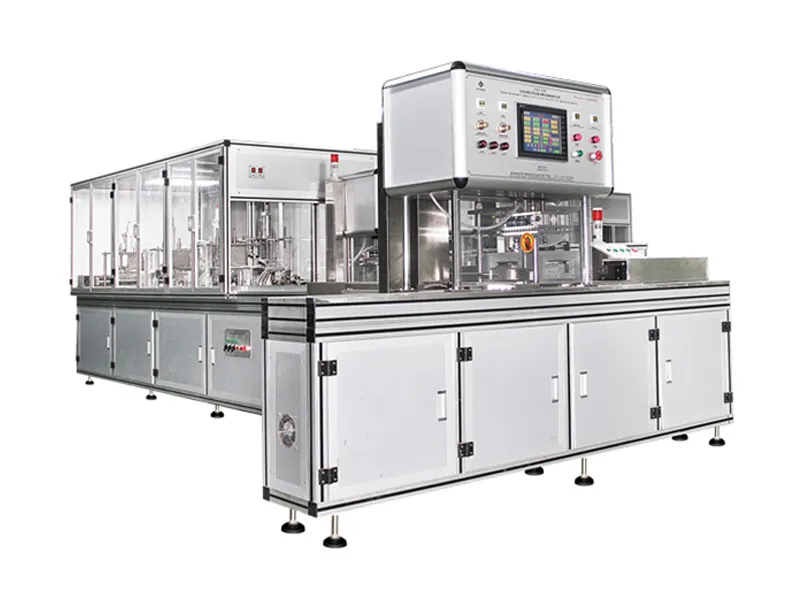

Urine Tube Assembly Line
Automatic assembly machine for urine collection tubes
Urine Tube Assembly Line
Automatic assembly machine for urine collection tubes
-
Production capacity 5,000 pcs/h
-
Tube Size 16×100mm, can be customized as per clients samples
-
Reagent filling range Customizable based on client specifications

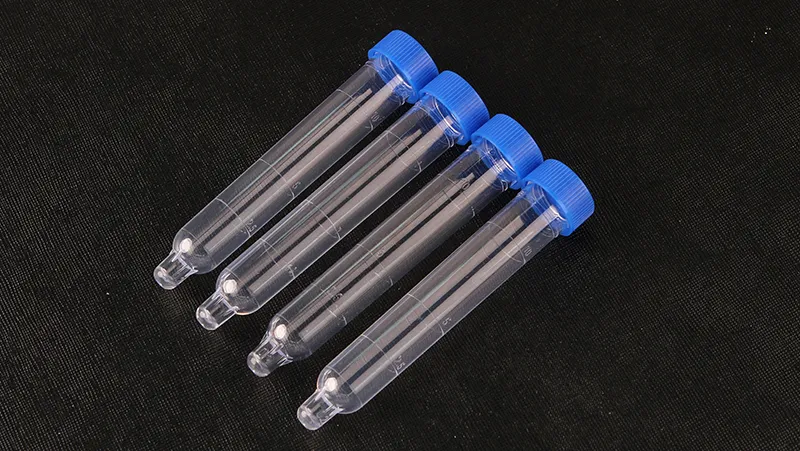

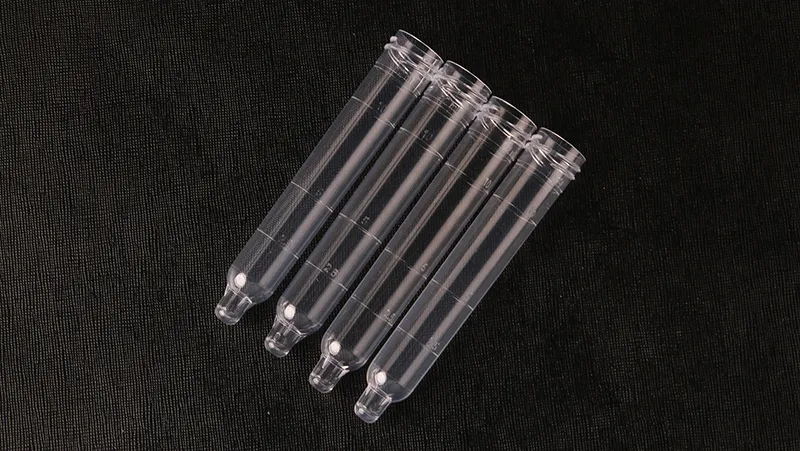

Finished Product Samples
Urine tube production demands precision and consistency, particularly when it comes to automated processes. Designed to enhance efficiency, this assembly line incorporates steps such as labeling, automated loading, powder reagent filling, and cap sealing, all supported by a vibration feeding mechanism to ensure continuous, uninterrupted operation.
Features
- Corporate a newly developed, highly accurate powder filling system.
- Automated systems ensure smooth feeding of tubes and caps.
- Suitable for various reagent types:
- Blood collection tubes: Fluoride, Potassium Oxalate.
- Urine tubes: Boric Acid, Chlorhexidine, Sodium Propionate, Sodium Formate, Anhydrous Sodium Tetraborate, etc.
- Blood collection tubes: Fluoride, Potassium Oxalate.
Technical Specifications
- Capacity: 5,000 pcs/h
- Tube Size: 16×100mm
- Reagent filling range: Customizable based on client specifications.
- Filling precision: ±20%
- Power consumption: 5kW/380V
- Overall dimensions (LxWxH): 2250mm × 1450mm × 1650mm
We provide efficient assembly solutions tailored to your medical device needs
