15,000 - 18,000 pcs/h

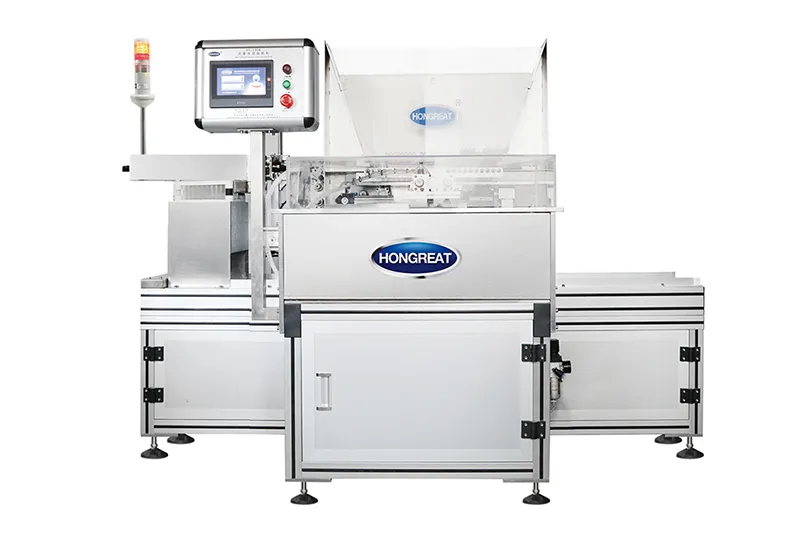

Automatic Test Tube Loading Machine

Automatic loader for bulk loading of PET & PP test tubes into tube racks

Automatic Test Tube Loading Machine

Automatic Test Tube Loading Machine

Automatic loader for bulk loading of PET & PP test tubes into tube racks
  • Production capacity
    Production capacity 15,000 - 18,000 pcs/h
  • Tube size
    Tube size Ø13×75mm;13×100mm
  • Material of machine frame
    Material of machine frame Aluminum alloy
Request a Quote
  • Automatic Test Tube Loading Machine
  • Automatic Test Tube Loading Machine
  • Automatic Test Tube Loading Machine
Features
  • Efficiently handles the task of loading test tubes into racks, ensuring smooth and continuous operation
  • Capable of loading 200 tubes per cycle without interruptions
  • Ergonomic design reduces worker strain and enhances productivity
  • Modular construction allows it to be integrated with other automated systems, creating a fully automated production line.
Technical Specifications
Production capacity 15,000 - 18,000 pcs/h Jig motion mode Fully automatic
Tube size Ø13×75mm;13×100mm Control system PLC
Air consumption 0.3m³/min Air pressure 0.4Kpa≤P≤0.7Kpa
Material of machine frame Aluminum alloy Power 1kW/AC380V/AC220V
Overall dimensions (L×W×H) 2000×1100×1750mm Weight 650kg
We provide efficient assembly solutions tailored to your medical device needs
