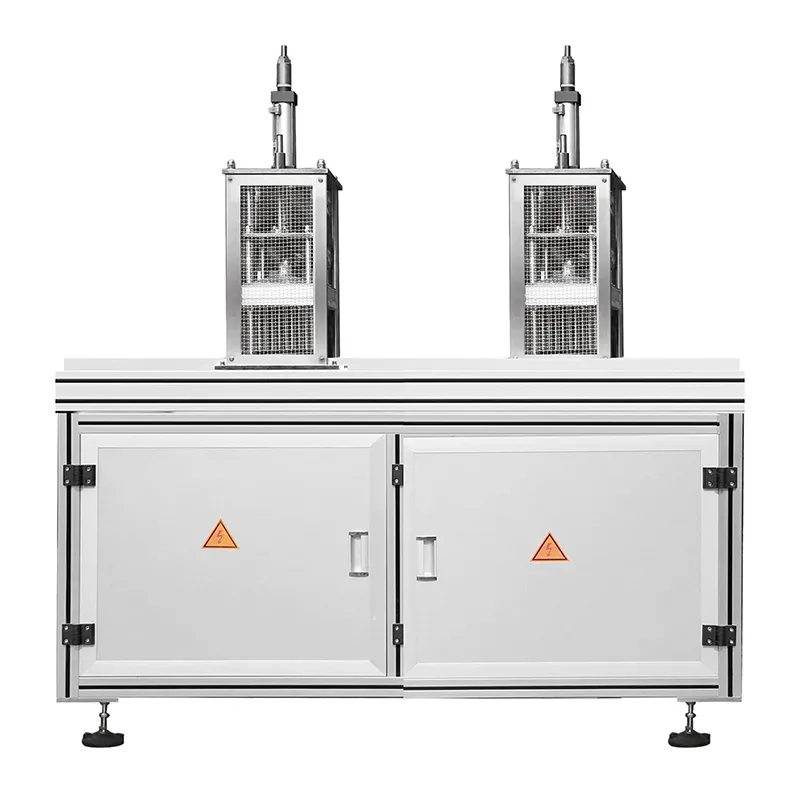

(2 sets)

Equipped with clean, dust-free "PTC" heating modules, the additive drying machine can simultaneously dry 100 tubes at a time, ensuring rapid drying of reagents. This drying system is designed to maintain the integrity and performance of blood collection tubes by providing efficient and uniform heat distribution.

• Production capacity: 200 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Temperature range: room temperature ~ 100℃
• Heating method: PTC dust-free heating
• Power: 10kW/AC380V
• Air consumption: 0.6m³/min
• Overall dimensions (L×W×H): 1800×900×1900mm

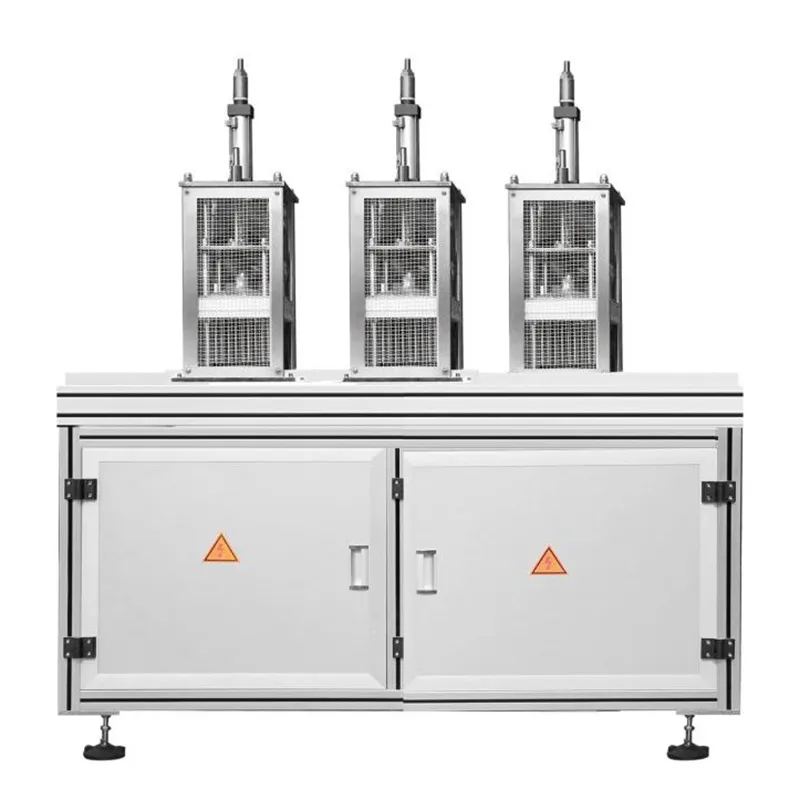

(3 sets)

In production environments where cleanliness and efficiency are essential, drying solutions must meet high standards. The PTC dust-free drying machine is equipped with three dust-free "PTC" heating modules, allowing for the simultaneous drying of up to 100 test tubes at a time. This drying system ensures fast and effective drying of reagents, maintaining a clean and controlled environment throughout the process.

• Production capacity: 300 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Temperature range: room temperature ~ 100℃
• Heating method: PTC dust-free heating
• Power: 10kW/AC380V
• Air consumption: 0.6m³/min
• Overall dimensions (L×W×H): 2200×900×1900mm

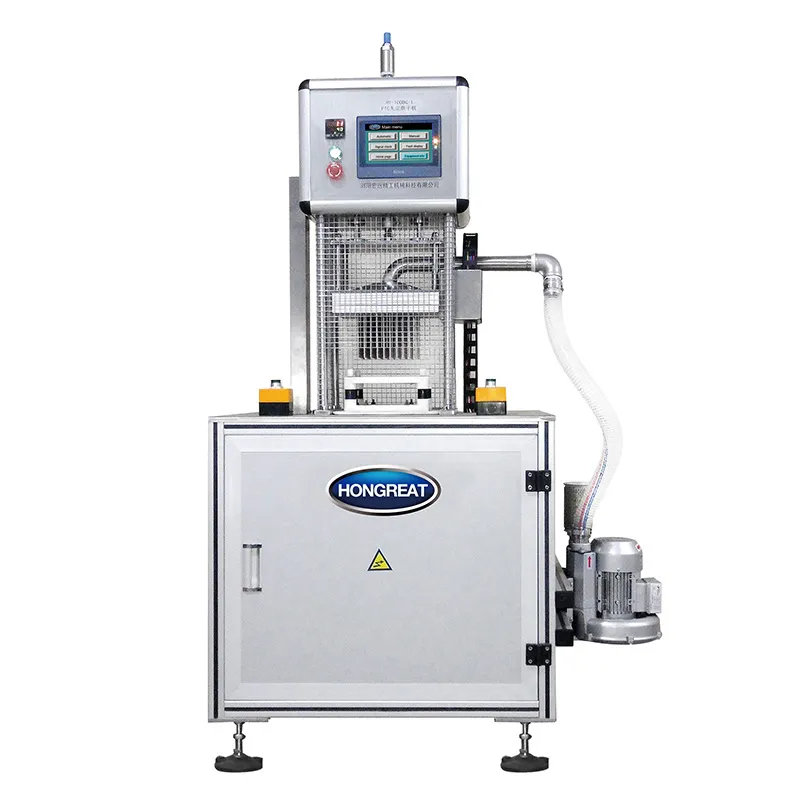

Equipped with a single set of clean, dust-free "PTC" heating module, capable of simultaneously drying 100 tubes in one cycle. This dust-free dryer not only ensures rapid and efficient drying of reagents but also offers precise temperature control for optimal drying results, designed to meet the rigorous standards of medical-grade cleanliness and efficiency.

• Production capacity: 100 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Temperature range: room temperature ~ 100℃
• Heating method: PTC dust-free heating
• Power: 6kW/AC380V
• Air consumption: 0.6m³/min
• Overall dimensions (L×W×H): 1100×600×1900mm
