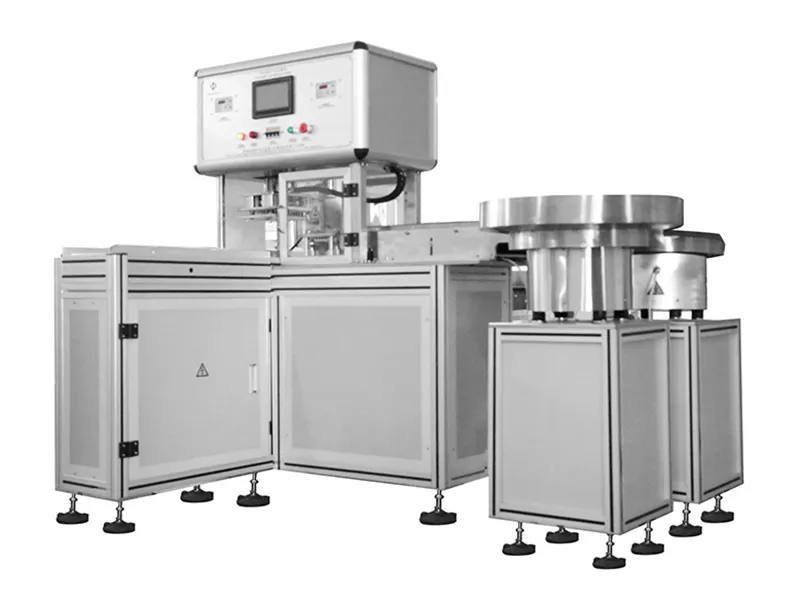

Automatic Capping Machine

Cap adding machine for blood collection tube

Equipped with a vacuum suction assisted cap picking system that automatically fits caps onto tube racks. Capable of handling 100 tubes in a single operation, this automatic capping machine streamlines the capping process, ensuring fast and secure cap placement on blood collection tubes.

• Production capacity: 15,000-18,000 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Cap size: Ø16mm(±0.05)×19mm(h)
• Cap feeding method: vibratory bowl
• Power: 1.5kW/AC380V
• Air consumption: 0.2m³/min
• Overall dimensions (L×W×H): 1500×2000×1800mm
