10,000-12,000 pcs/h Mini Capillary Tube Assembly Line

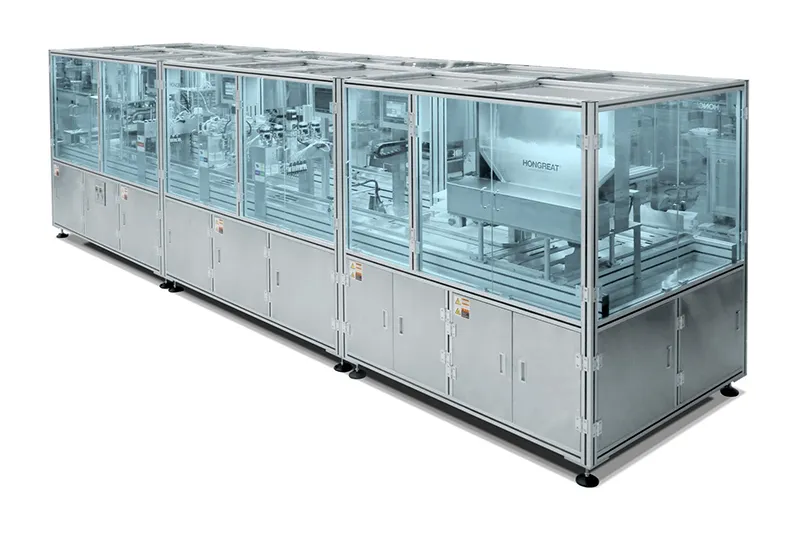

Automatic Mini/Capillary Blood Collection Tube Assembly Line

Automatic production line for assembling mini capillary blood collection tubes

Automatic Mini/Capillary Blood Collection Tube Assembly Line

Automatic production line for assembling mini capillary blood collection tubes

Production capacity 10,000-12,000 pcs/h
Tube size Ø11×45mm
Cap size As per client’s samples

Request a Quote

Finished Product Samples

Capable of producing up to 12,000 mini capillary blood collection tubes per hour, this automatic assembly line is designed to handle the precise assembly of 11×45mm mini capillary blood collection tubes. The assembly system processes each step, from tube loading to foam tray packaging, ensuring consistency and quality in high-volume medical production. With a focus on accuracy, the line manages additive dosing and capping, tailored for the demands of different tube type production.

Work Flow

Tube loading

Inversion detection

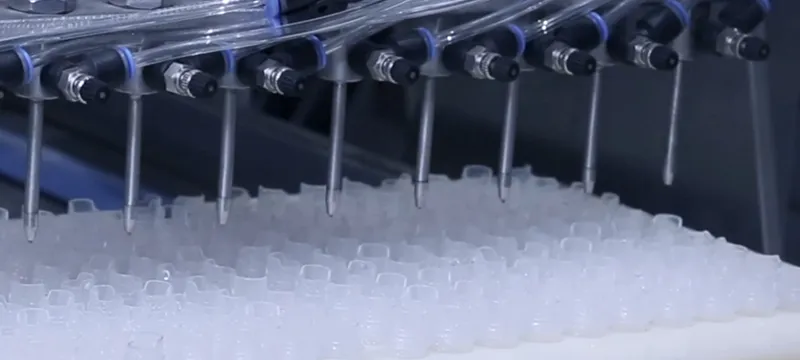

Additive dosing (EDTA, heparin, clot activator, sodium citrate)

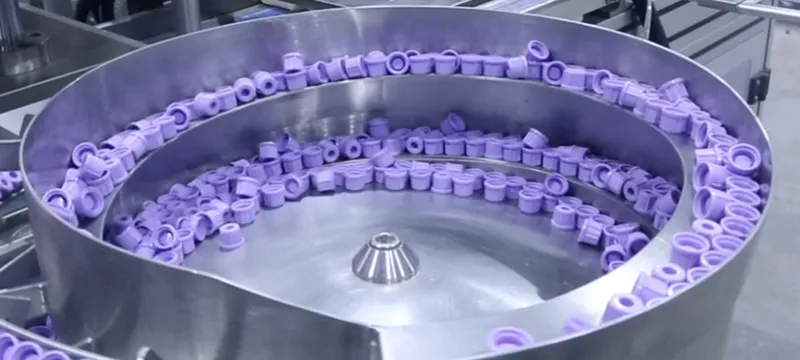

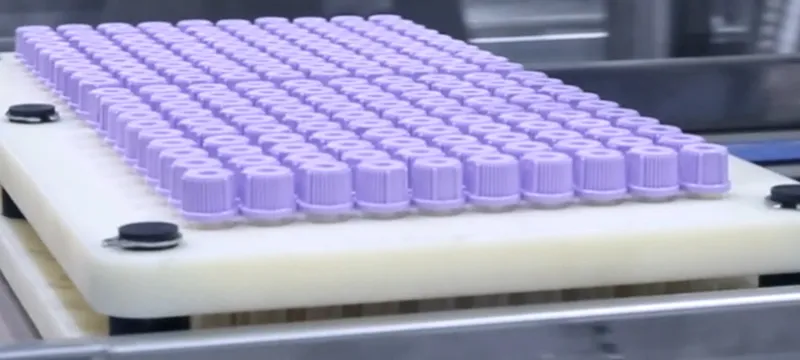

Capping

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Production capacity	10,000-12,000 pcs/h
Tube size	Ø11×45mm
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 10 sets of precision ceramic pump
	Blood clot activator (BCA): 10 sets of precision ceramic pump
	Sodium citrate: 5 sets of precision ceramic pump (100-600μL ±6%)
Additive drying system	3 PTC dust-free drying machines
Detection system	Inverted tube detection before additive dosing
Detection system	Alarm for shortage of foam trays
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	20kW/AC380V
