S12 Disposable Virus Sampling Tube Line

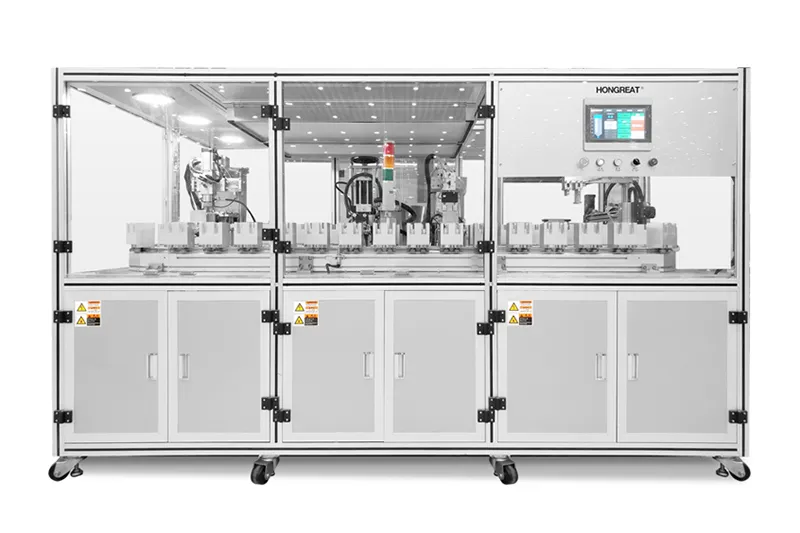

Automatic S12 Disposable Virus Sampling Tube Assembly Line

Virus sample collection tube assembly machine for VTM (virus transport medium) tubes

Automatic S12 Disposable Virus Sampling Tube Assembly Line

Virus sample collection tube assembly machine for VTM (virus transport medium) tubes

Production capacity 8,000-10,000 pcs/h
Tube loading Automatically loads tubes using a vibrating bowl system.
Additive dosing Adjustable dosing between 1-10ml with a high-precision ceramic pump, tolerance of ±3%

Request a Quote

Finished Product Samples

The automatic virus sampling tube assembly line offers a production capacity of 8,000 to 10,000 tubes per hour, ensuring reliable and efficient assembly of disposable virus sampling tubes. This fully automatic sampling tube processing system manages every step of the process, from tube loading to additive dosing with virus preservation solution, cap loading, and tightening the cap for a secure fit. Our sampling tube assembly line guarantees consistent quality and output, tailored to meet the demands of large-scale factories for universal transport medium production.

Work Flow

Automatic tube loading
Additive dosing (virus preservation solution)
Cap loading
Capping
Finished product output

Advantages

Precision ceramic pumps allow for easy adjustment of dosing on HMI
With more than 20 years of expertise, our assembly lines have been exported over 40 countries worldwide

Technical Specifications

Station	Spec.	Configuration
Tube loading	Automatically loads tubes using a vibrating bowl.
Additive dosing	Adjustable dosing between 1-10ml with a high-precision ceramic pump, with tolerance +/-3%	Equipped with 12 dosing systems, sterilizable for reliable and safe operation
Cap loading	Uses a vibrating bowl to automatically load caps	with detection for lack of cap in the feeding bowl
Capping	Secure capping functionality with torque control to avoid cap damage during the process	Includes finished product inspection
Equipped with a Class 100 laminar flow hood and UV sterilization lamp, with a production capacity of approximately 8,000-10,000 units per hour. Can be integrated with labeling machines and foam tray loaders.
