10,000-15,000 pcs/h Non-Vacuum Tube Assembly Line

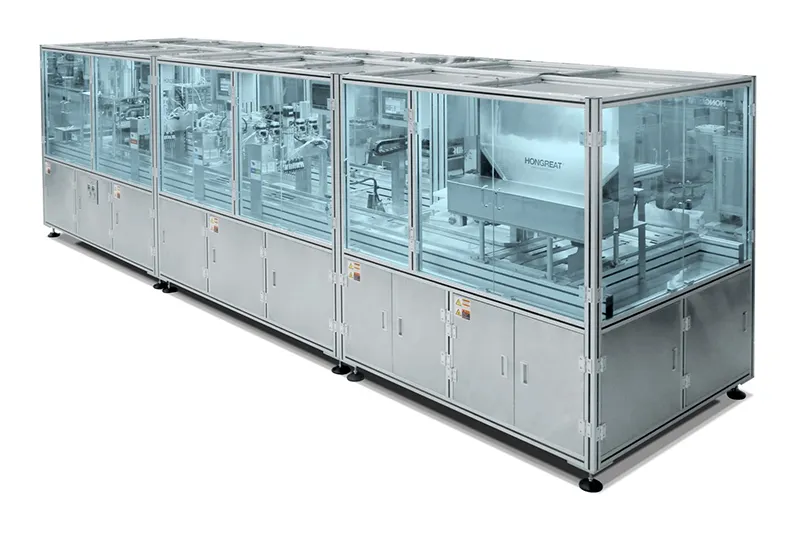

Automatic Non-Vacuum Blood Collection Tube Assembly Line

Blood collection tube assembly machine for non-vacuum blood collection tubes

Automatic Non-Vacuum Blood Collection Tube Assembly Line

Blood collection tube assembly machine for non-vacuum blood collection tubes

Production capacity 10,000-15,000 pcs/h
Tube size Ø13×75mm, Ø13×100mm, customizable
(available in PET, PP, glass)
Cap size As per client’s samples

Request a Quote

Finished Product Samples

Capable of producing 10,000 to 15,000 non-vacuum blood collection tubes per hour, this automated assembly line offers a reliable and streamlined production process. The system is compatible with various tube materials, including PET, PP, and glass, making it suitable for diverse manufacturing needs. With precise additive dosing and consistent output, it’s an efficient solution for manufacturers focused on high-volume production.

Work Flow

Tube loading

Inversion detection

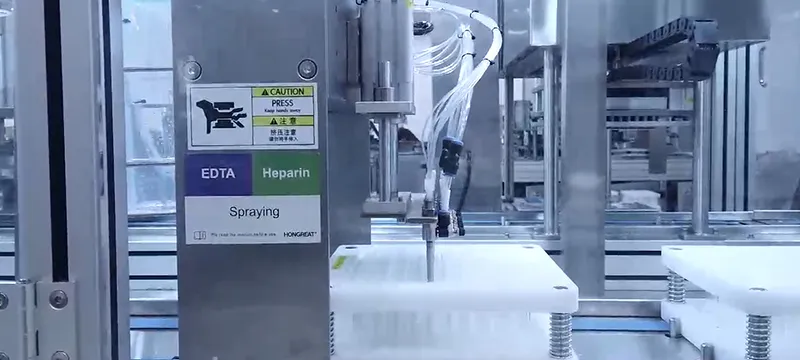

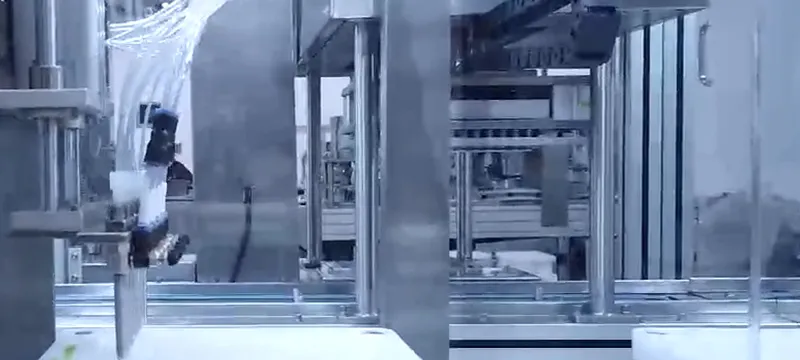

Additive dosing (EDTA, heparin, clot activator, sodium citrate)

Capping

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Model	HY100AB
Production capacity	10,000-15,000 pcs/h
Tube size	Ø13×75mm, Ø13×100mm, customizable
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 10 sets of precision ceramic pump
	Blood clot activator (BCA): 10 sets of precision ceramic pump
	Sodium citrate: 5 sets of precision ceramic pump

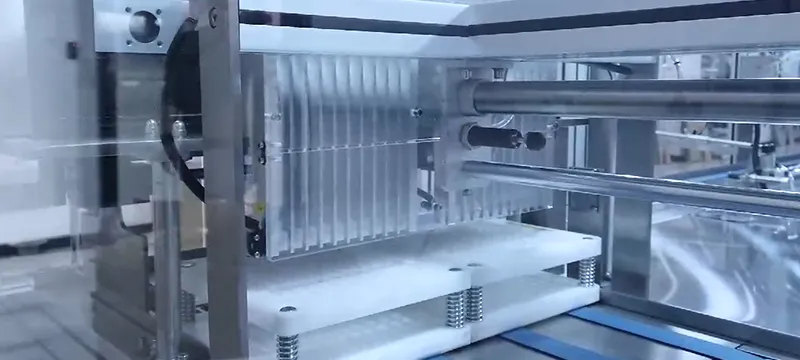

Additive drying system	4 PTC dust-free drying machines
Detection system	Inverted tube detection before additive dosing
Detection system	Alarm for shortage of foam trays
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	25kW/AC380V
