(5 nozzles)

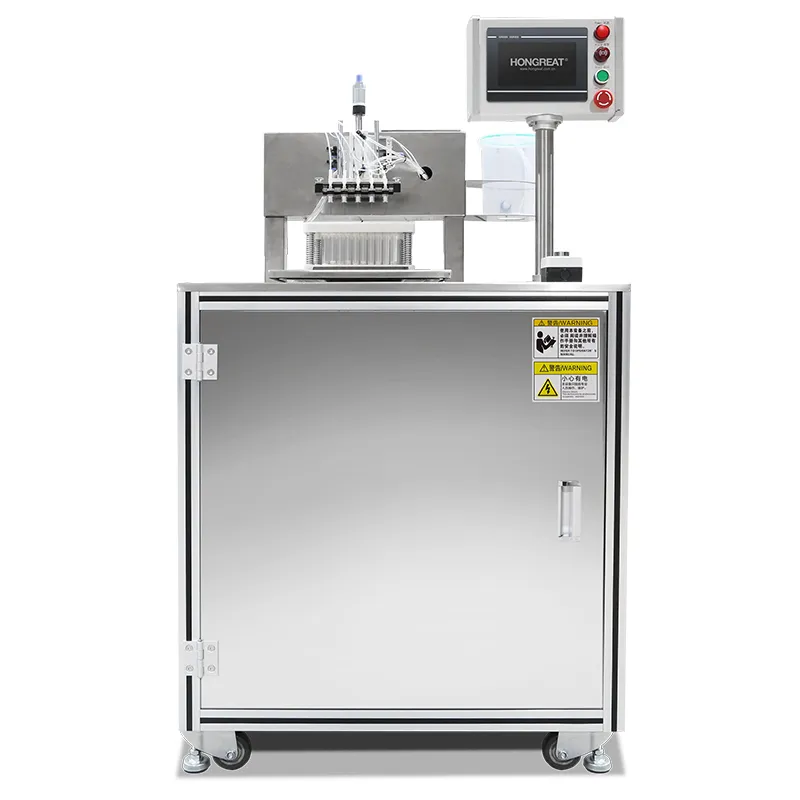

Designed for precision in medical production, this spraying machine utilizes ceramic pumps to deliver highly accurate spray coating of clot activators, EDTA or other liquid suspensions. The spray coating system ensures that each application meets strict quality standards.

• Production capacity: 6,000 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 20-50μL/pc
• Dosage accuracy: ±10%
• Power: 1kW/AC220V
• Air consumption: 0.2m³/min
• Overall dimensions (L×W×H): 800×1100×1500mm

(5 nozzles)

Equipped with a distributed ceramic precision spray system, this spray coater uses five nozzles to ensure controlled and accurate application of EDTA or heparin. It is designed to optimize the coating process by minimizing waste while delivering consistent and reliable coverage across all tubes.

• Production capacity: 6,000 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 20-50μL/pc
• Dosage accuracy: ±6%
• Power: 1kW/AC220V
• Air consumption: 0.2m³/min
• Overall dimensions (L×W×H): 600×1100×1400mm

(5 nozzles)

Featuring a system of five precision ceramic pumps, this additive doser provides accurate and consistent filling for sodium citrate and other water-soluble agents. Built for efficiency, it supports large-scale production while maintaining precise dosing for each application.

• Production capacity: 6,000 pcs/h
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 100-400μL/pc
• Dosage accuracy: ±4%
• Power: 1kW/AC220V
• Air consumption: 0.2m³/min
• Overall dimensions (L×W×H): 600×1100×1400mm

(1 nozzle)

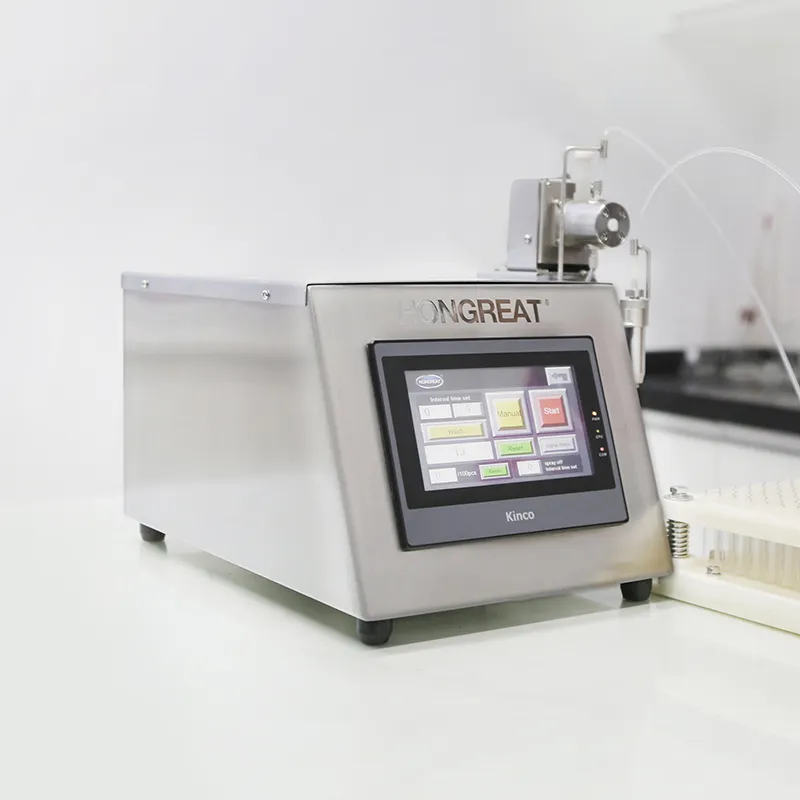

Efficient dosing in medical production requires precision and control, especially in smaller operations. The microscale EDTA spray coating machine is equipped with a single precision ceramic pump, ensuring accurate application of EDTA or heparin. Its compact design makes it an excellent choice for targeted, microscale coating processes.

• Production capacity: 2,000 pcs/h (depending on manual operation speed)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 20-50μL/pc
• Dosage accuracy: ±10%
• Power: 0.2kW/AC220V
• Overall dimensions (L×W×H): 220×400×180mm

(1 nozzle)

Precision is important when dosing water-soluble agents. The microscale sodium citrate filling machine features a single precision ceramic pump, delivering accurate and controlled dosing of sodium citrate or other similar agents, making it an efficient solution for precise applications.

• Production capacity: 2,000 pcs/h (depending on manual operation speed)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 100-400μL/pc
• Dosage accuracy: ±10%
• Power: 0.2kW/AC220V
• Overall dimensions (L×W×H): 220×400×180mm

(1 nozzle)

Accurate dosing of clot activators is essential for maintaining consistent product quality. The microscale clot activator (BCA) spray coating machine uses a single precision ceramic pump to provide controlled and precise spray coating of clot activators or other liquid suspensions, ensuring reliable performance in small-scale applications.

• Production capacity: 2,000 pcs/h (depending on manual operation speed)
• Tube size: Ø13×75mm, Ø13×100mm, Ø16×100mm
• Dosage volume: 20-50μL/pc
• Dosage accuracy: ±10%
• Power: 0.2kW/AC220V
• Overall dimensions (L×W×H): 220×400×180mm
