12,000-15,000 pcs/h

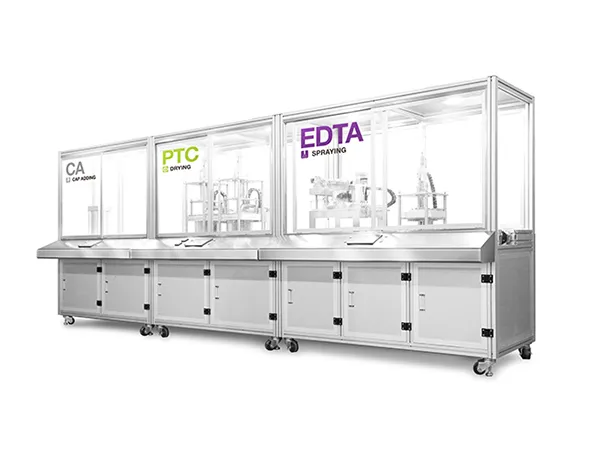

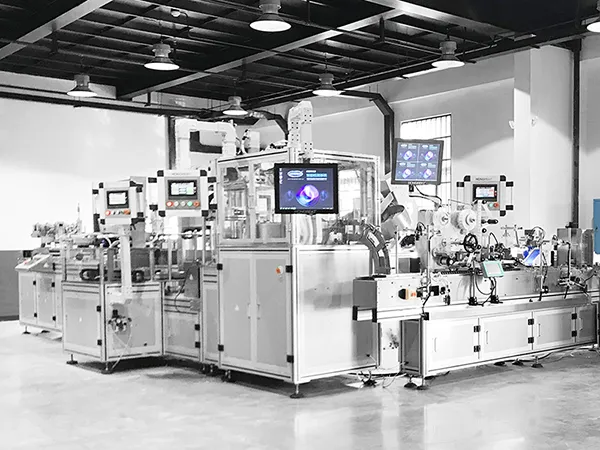

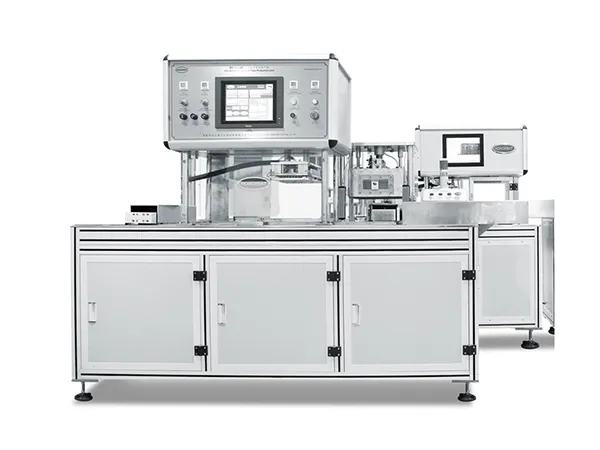

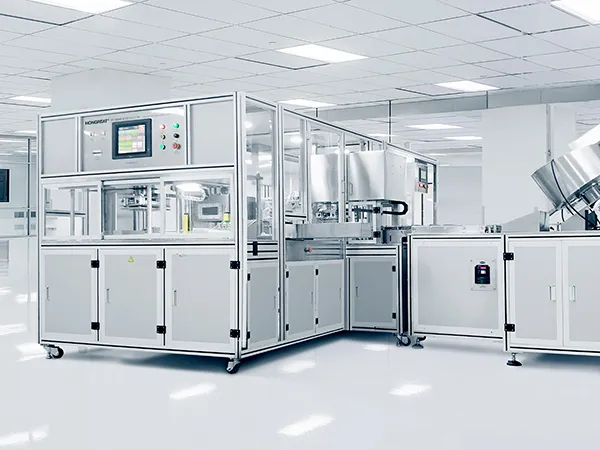

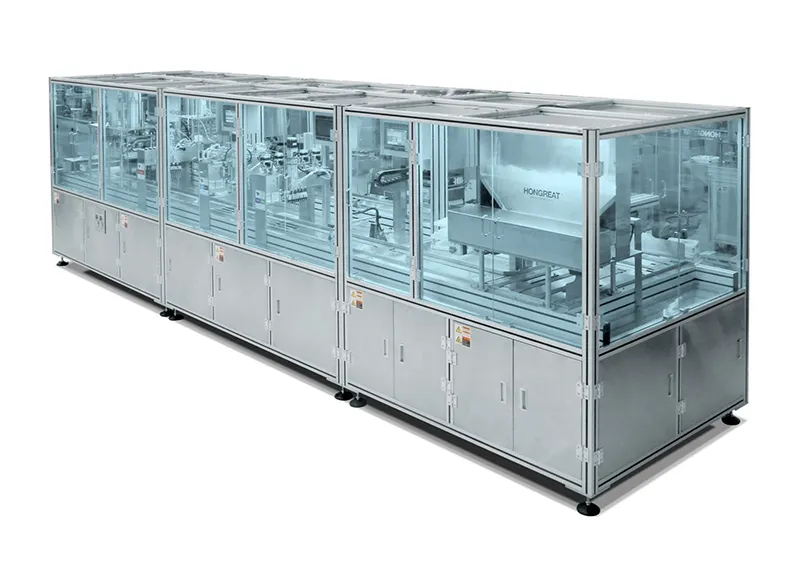

Automatic Vacuum Blood Collection Tube Assembly Line
Automatic production line for assembling vacuum & non-vacuum blood collection tubes
Automatic Vacuum Blood Collection Tube Assembly Line
Automatic production line for assembling vacuum & non-vacuum blood collection tubes
-
Production capacity 12,000-15,000 pcs/h
-
Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable
(available in PET, PP, glass) -
Cap size As per client's samples

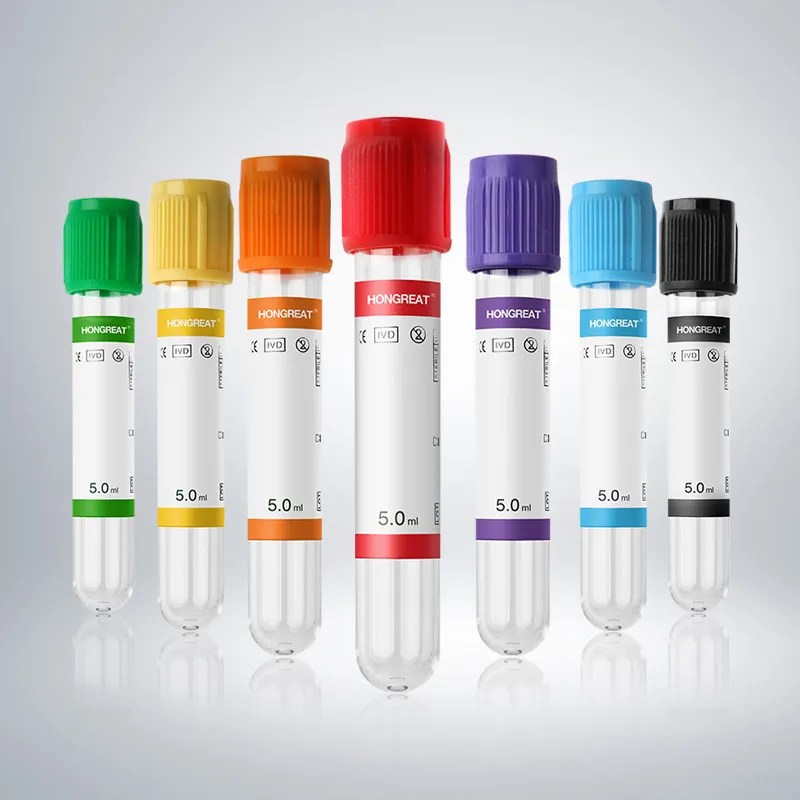

Finished Product Samples
This fully automatic blood collection tube assembly machine is designed for the production of both vacuum and non-vacuum medical disposable tubes. By adjusting the vacuum setting to zero, the assembly system can efficiently switch to non-vacuum tube production. It’s compatible with tubes made from PET, PP, or glass, ensuring versatility and precision in the assembly process.

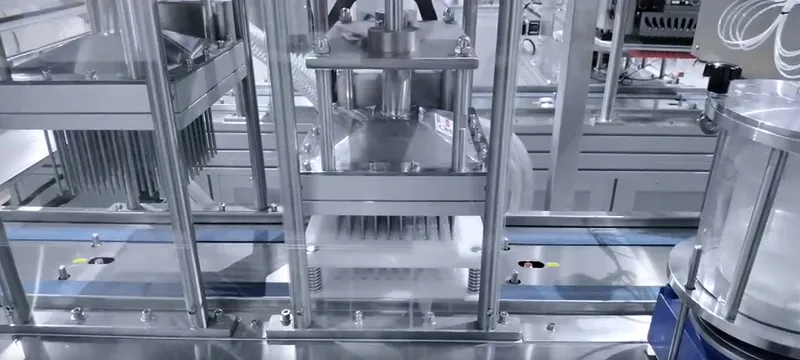

Work Flow
- Tube loading
- Inversion detection

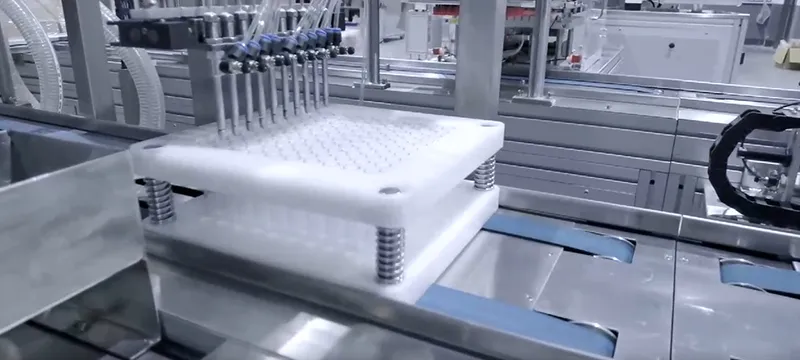

- Additive dosing (K2 EDTA/K3 EDTA, heparin, clot activator, sodium citrate)

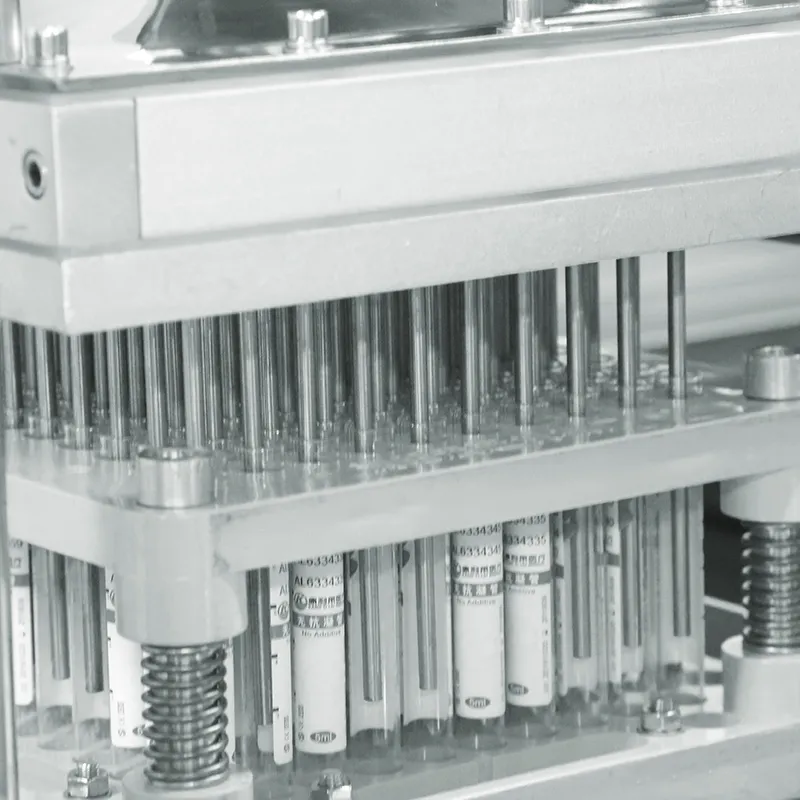

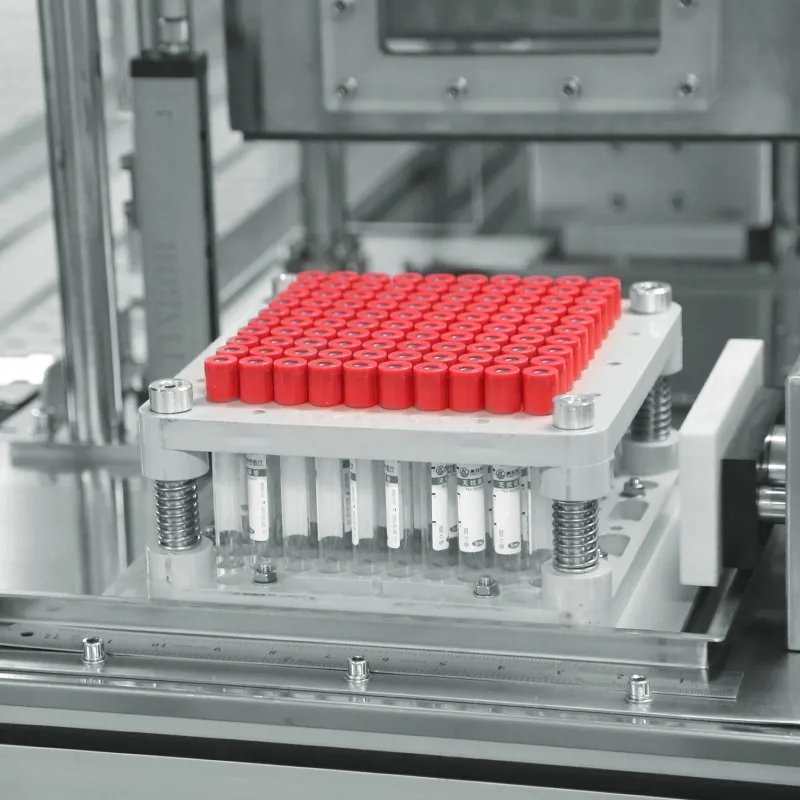

- Capping
- Vacuuming

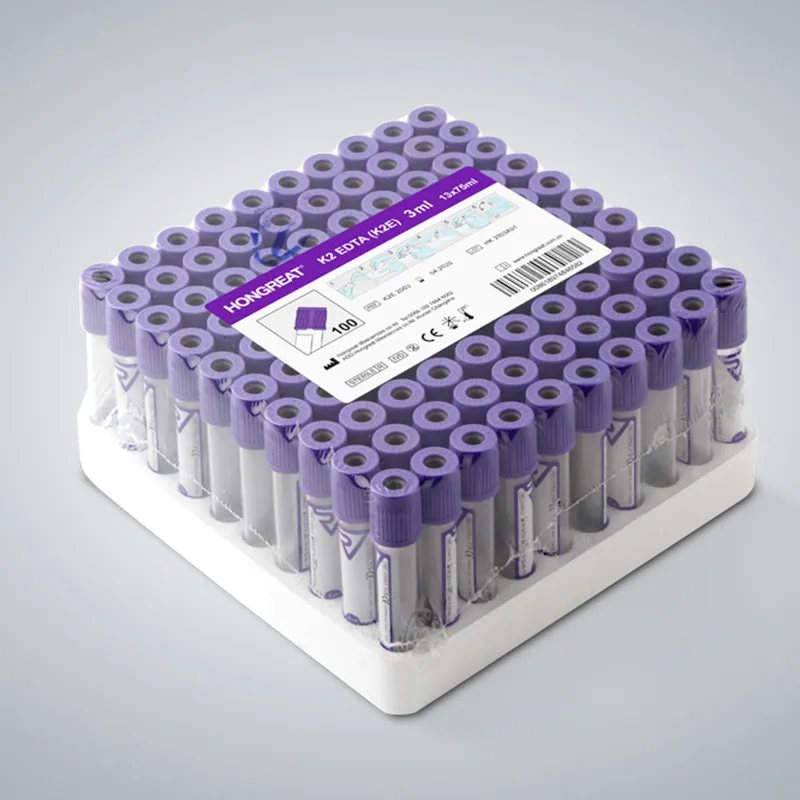

- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
| Model | HY100AB (standard) |
| Production capacity | 12,000-15,000 pcs/h |
| Tube size | Ø13×75mm,Ø13×100mm,Ø16×100mm,customizable (available in PET,PP,glass) |
| Cap size | As per client's samples |
| Control system | PLC control with touch screen |
| Additive dosing system | K2/K3 EDTA:10 sets of precision ceramic pump |
| Blood clot activator (BCA):10 sets of precision ceramic pump | |
| Sodium citrate:5 sets of precision ceramic pump | |
| Additive drying system | 3 PTC dust-free drying machines |
| Detection system | Inverted tube detection before additive dosing |
| Alarm for shortage of foam trays | |
| Vacuum degree | Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan) |
| Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
| Power | 20kW/AC380V |
Frequently Asked Questions
What is the warranty period for the fully automatic blood collection tube assembly machine?
What is the warranty period for the fully automatic blood collection tube assembly machine?
The assembly machine includes a 12-month warranty, excluding wear parts. This warranty starts from the date the machine is received or as recorded on the delivery confirmation. Regular maintenance and proper usage can help extend the overall lifespan of the machine.
Do you provide on-site installation and support for the machine?
Do you provide on-site installation and support for the machine?
Yes, we offer comprehensive on-site installation and commissioning services. Our team ensures that the medical supplies assembly machine is set up and running efficiently, providing you with hands-on support for a smooth start.
