8,000-12,000 pcs/h

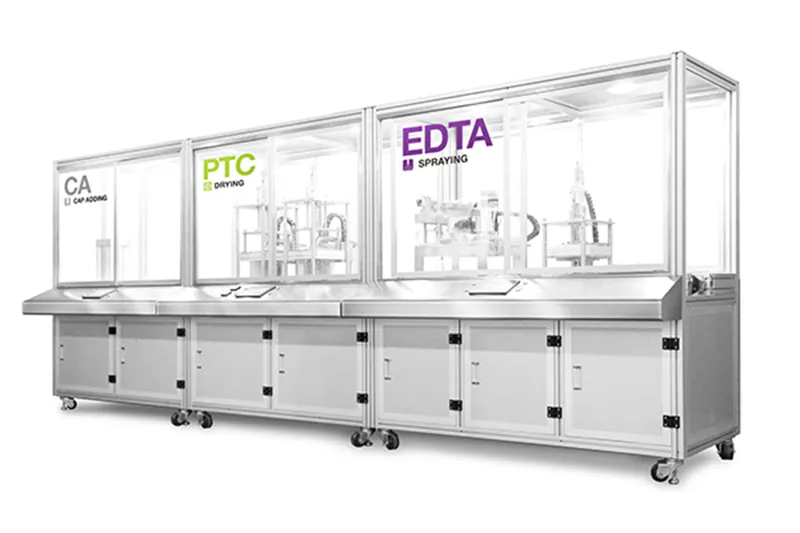

Modular Vacuum Blood Collection Tube Assembly Line
Modular type, more feasible for upgrading in future expanding
Modular Vacuum Blood Collection Tube Assembly Line
Modular type, more feasible for upgrading in future expanding
-
Production capacity 8,000-12,000 pcs/h
-
Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable
(available in PET, PP, glass) -
Cap size As per client’s samples

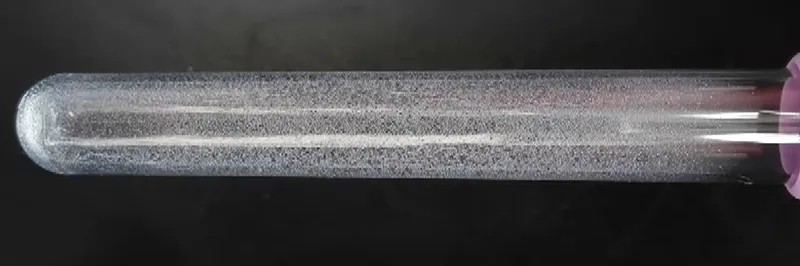

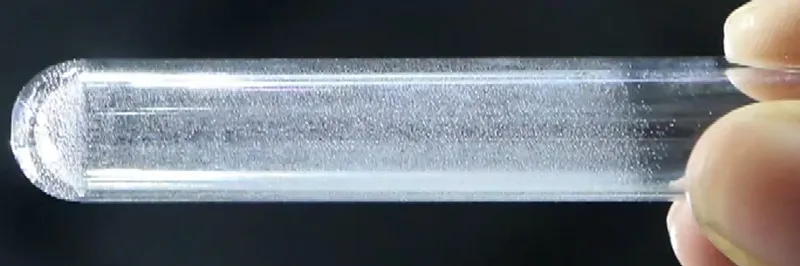

Finished Product Samples
The modular design of this blood collection tube assembly line allows for flexible production of 8,000 to 12,000 blood collection tubes per hour. The assembly system only requires few modules that are simply configured at the beginning stage, and other modules can be gradually increased to upgrade it into a fully automatic line when the manufacturing plant needs to be expanded in future.
Work Flow
- Inversion detection

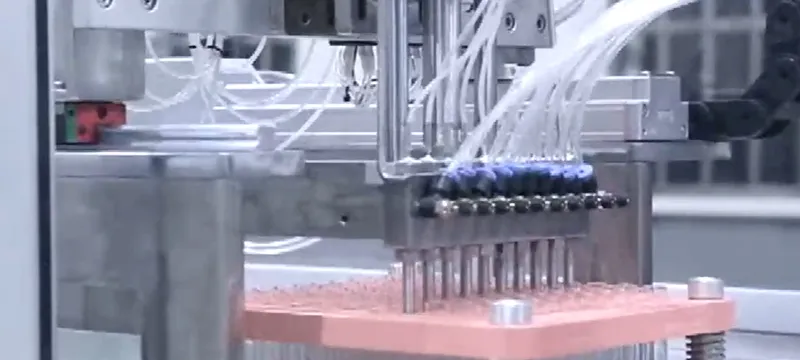

- Additive dosing (EDTA, heparin, clot activator, sodium citrate)
- Capping
- Vacuuming
- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
| Model | H100AM |
| Production capacity | 8,000-12,000 pcs/h |
| Tube size | Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable (available in PET, PP, glass) |
| Cap size | As per client’s samples |
| Control system | PLC control with touch screen |
| Additive dosing system | K2/K3 EDTA: 10 sets of precision ceramic pump |
| Blood clot activator (BCA): 10 sets of precision ceramic pump | |
| Sodium citrate: 5 sets of precision ceramic pump | |

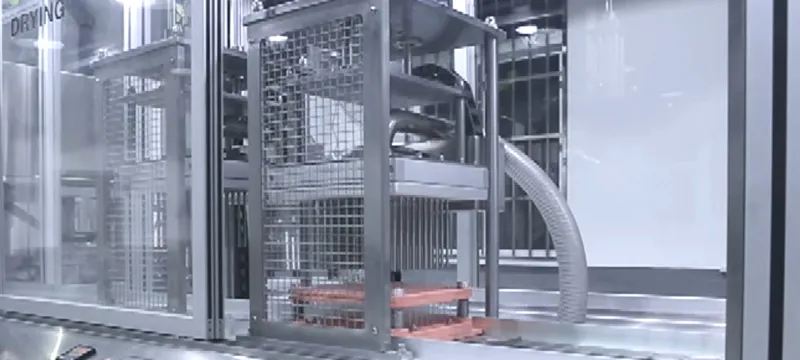

| Additive drying system | 3 PTC dust-free drying machines |
| Detection system | Inverted tube detection before additive dosing |
| Alarm for shortage of foam trays | |
| Vacuum degree | Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan) |
| Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
| Power | 20kW/AC380V |
Frequently Asked Questions
What is the warranty period for the fully automatic blood collection tube assembly machine?
What is the warranty period for the fully automatic blood collection tube assembly machine?
The assembly machine includes a 12-month warranty, excluding wear parts. This warranty starts from the date the machine is received or as recorded on the delivery confirmation. Regular maintenance and proper usage can help extend the overall lifespan of the machine.
Do the medical device processing machines support preset production parameters?
Do the medical device processing machines support preset production parameters?
Yes, our sample collection tube production machines are designed with the capability to preset production parameters, making it easier to streamline operations and ensure consistency.
