12,000-15,000 pcs/h (with Tube Sorting)

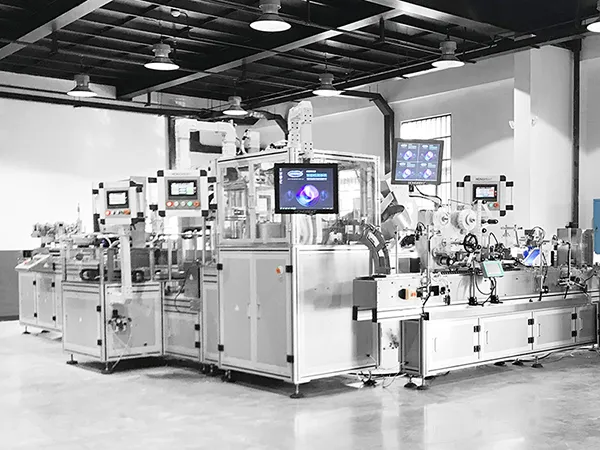

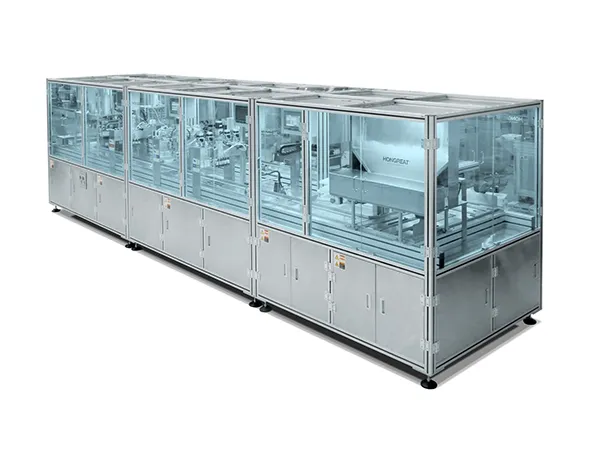

Automatic Vacuum Blood Collection Tube Assembly Line
with tube sorting for dis-ordered tubes from the injection molding machine
Automatic Vacuum Blood Collection Tube Assembly Line
with tube sorting for dis-ordered tubes from the injection molding machine
-
Production capacity 12,000-15,000 pcs/h
-
Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm or customizable
(available in PET, PP, glass) -
Cap size As per client's samples

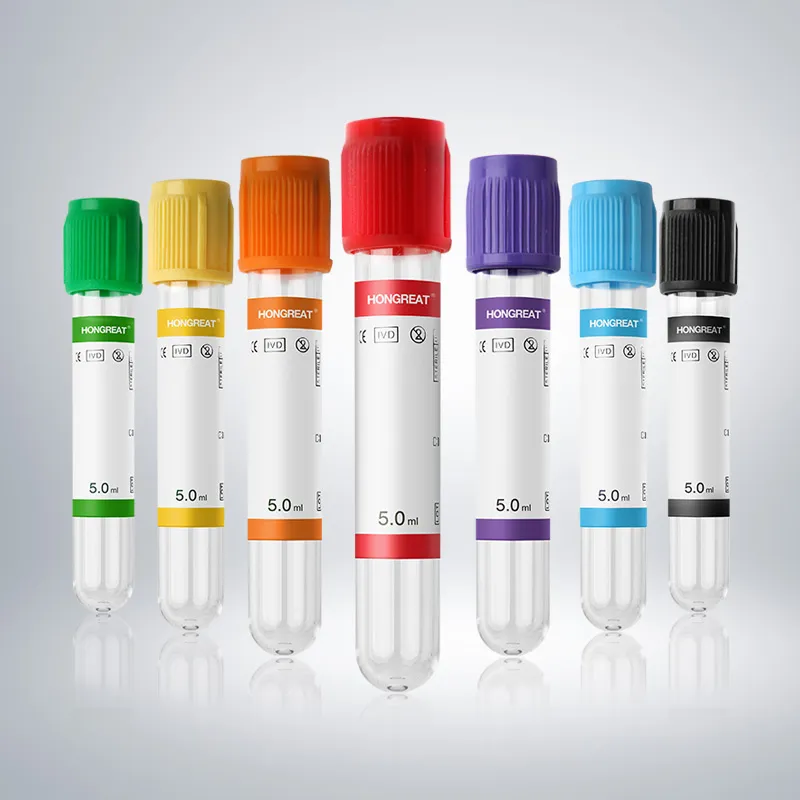

Finished Product Samples
This fully automatic blood collection tube making machine not only conducts the assembly process for medical disposable vacuum blood collection tube, but also accomplishes tube sorting for dis-ordered tubes from the injection molding machine.
It is well suited for those large-scale factories who manufactures PET or PP test tubes.
Work Flow

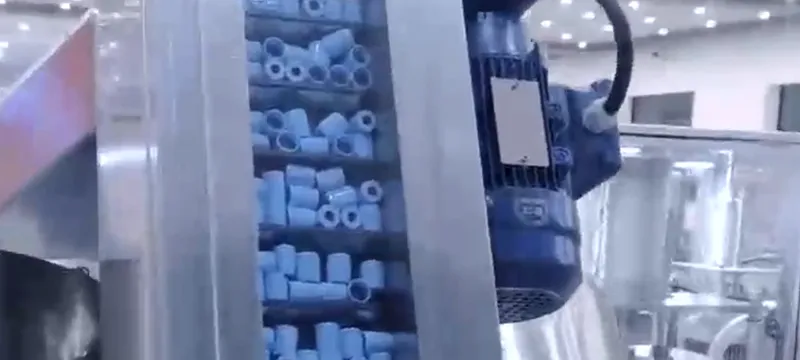

- Tube sorting
- Labeling (tubes without labels are automatically rejected)
- Tube loading
- Inversion detection
- Additive dosing (K2 EDTA/K3 EDTA, heparin, clot activator, sodium citrate)

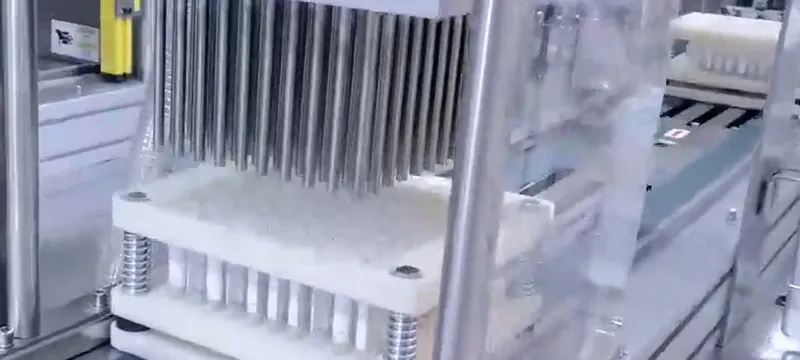

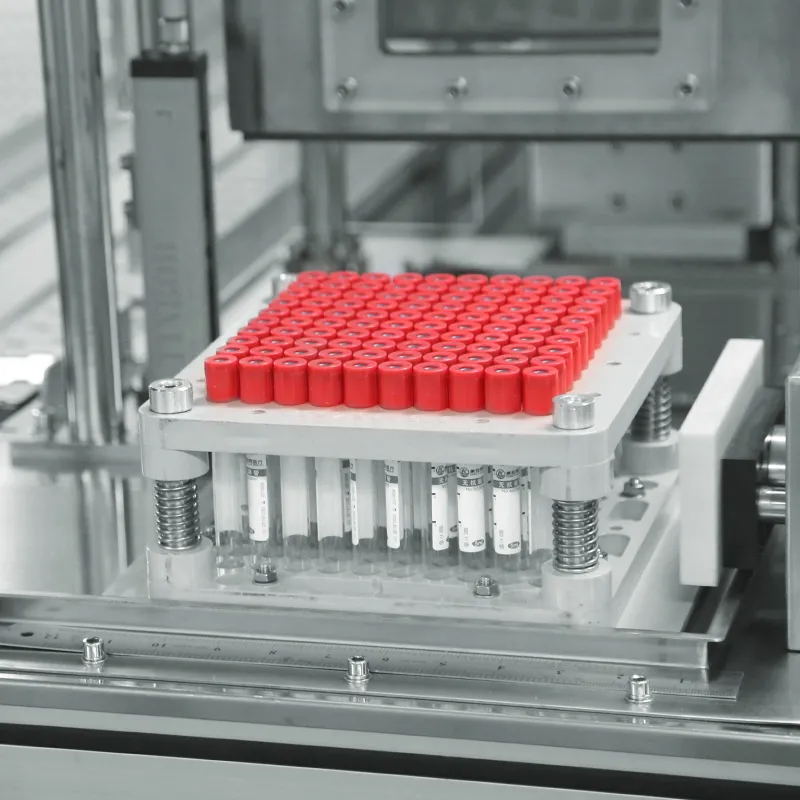

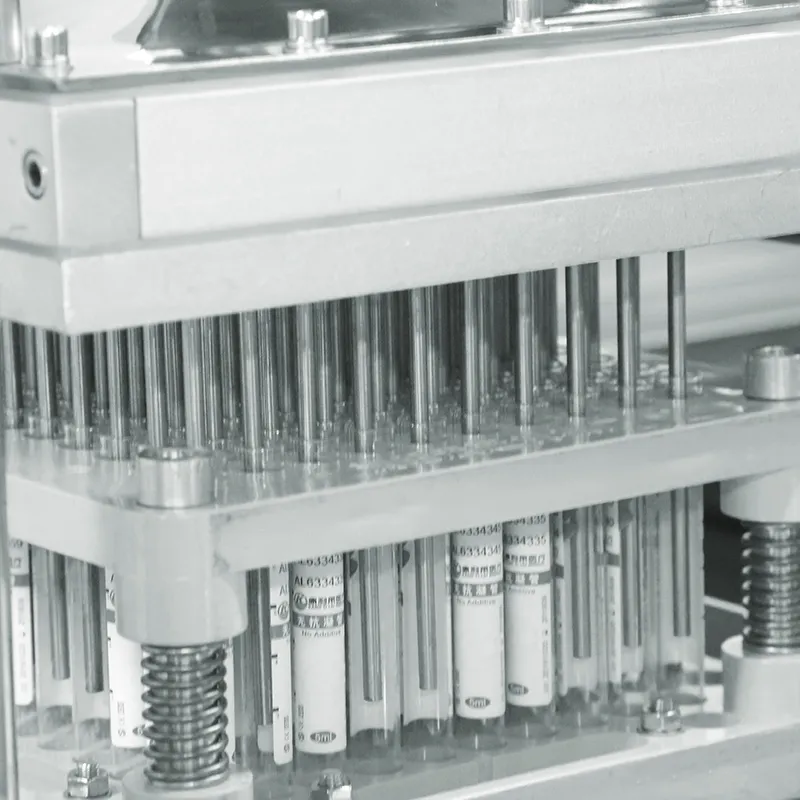

- Capping
- Vacuuming

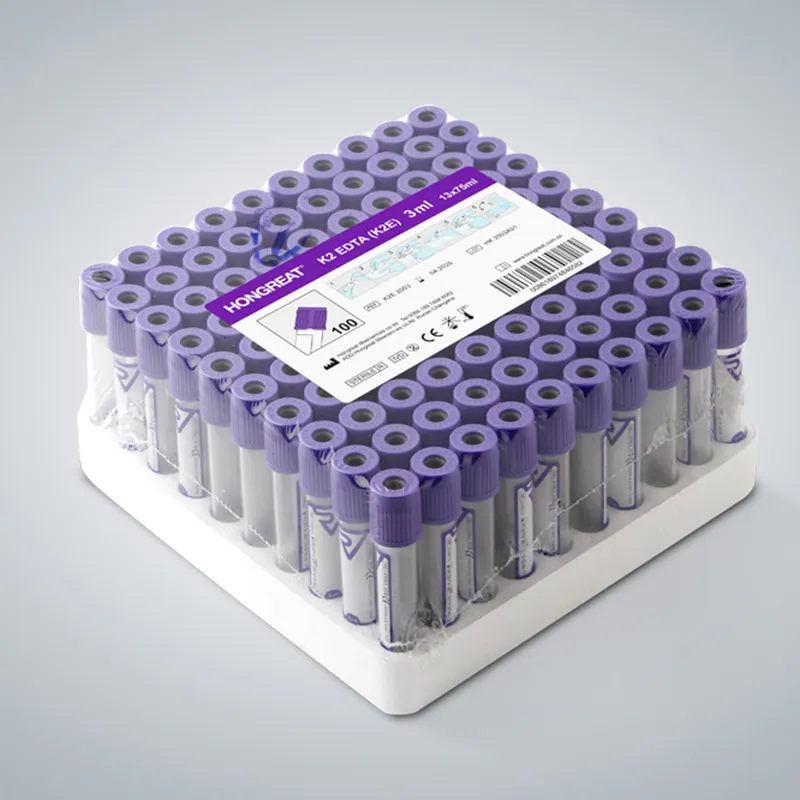

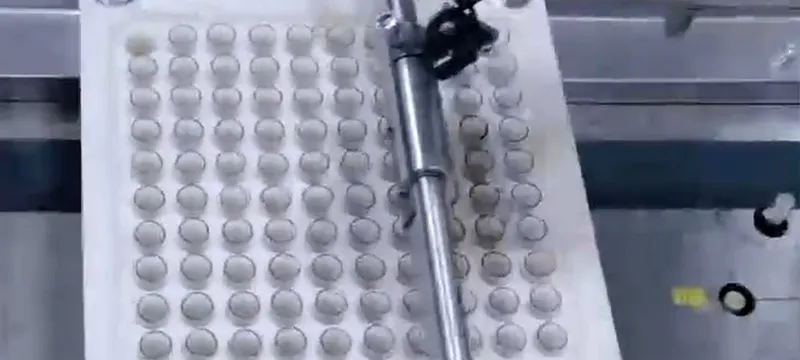

- Foam tray loading
- Heat shrink packaging
- Completion
Technical Specifications
| Model | H100+Tube Sorting |
| Production capacity | 12,000-15,000 pcs/h |
| Tube size | Ø13×75mm, Ø13×100mm, Ø16×100mm or customizable (available in PET, PP, glass) |
| Cap size | As per client's samples |
| Control system | PLC control with touch screen |
| Additive dosing system | K2/K3 EDTA: 10 sets of precision ceramic pump |
| Blood clot activator (BCA): 10 sets of precision ceramic pump | |
| Sodium citrate: 5 sets of precision ceramic pump | |

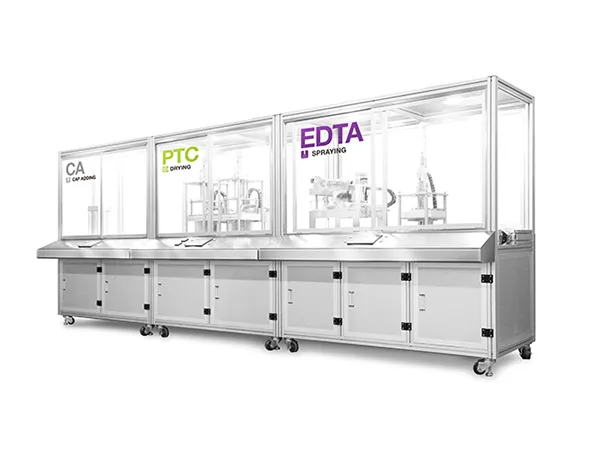

| Additive drying system | 4 PTC dust-free drying machines |
| Detection system | Rejection of unlabeled tubes |
| Inverted tube detection before additive dosing | |
| Alarm for shortage of foam trays | |
| Vacuum degree | Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan) |
| Air consumption | Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa |
| Power | 30kW/AC380V |
Frequently Asked Questions
Can the blood collection tube assembly machine settings be password protected to avoid accidental changes?
Can the blood collection tube assembly machine settings be password protected to avoid accidental changes?
Absolutely. We can customize the medical device assembly machines with password protection to safeguard settings and prevent unauthorized or accidental adjustments during production.
Do you provide on-site installation and support for the machine?
Do you provide on-site installation and support for the machine?
Yes, we offer comprehensive on-site installation and commissioning services. Our team ensures that the medical supplies assembly machine is set up and running efficiently, providing you with hands-on support for a smooth start.
